Λεπτομέρειες:
Πληρωμής & Αποστολής Όροι:
|
| Τύπος: | συμπιεστής ψυγείων | Συμβατότητες ψυκτικών ουσιών: | Ρ-134a, ρ-407C |
|---|---|---|---|
| Φάση: | 1 | Αποδόσεις που δίνονται στους όρους: | -7°C evap. temp. 35°C cond. |
| Ικανότητα θέρμανσης: | 3,93 KW | Τάσεις: | 220-240 Β σε 50 Hz |
| συχνότητα: | 50 Hz | Εισαγωγή δύναμης: | 0,94 KW |
| Υψηλό φως: | Συμπιεστής κλιματισμού Copeland,Zh12k4e-pfz-524 |
||

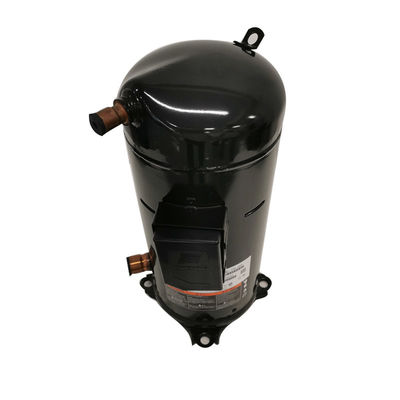

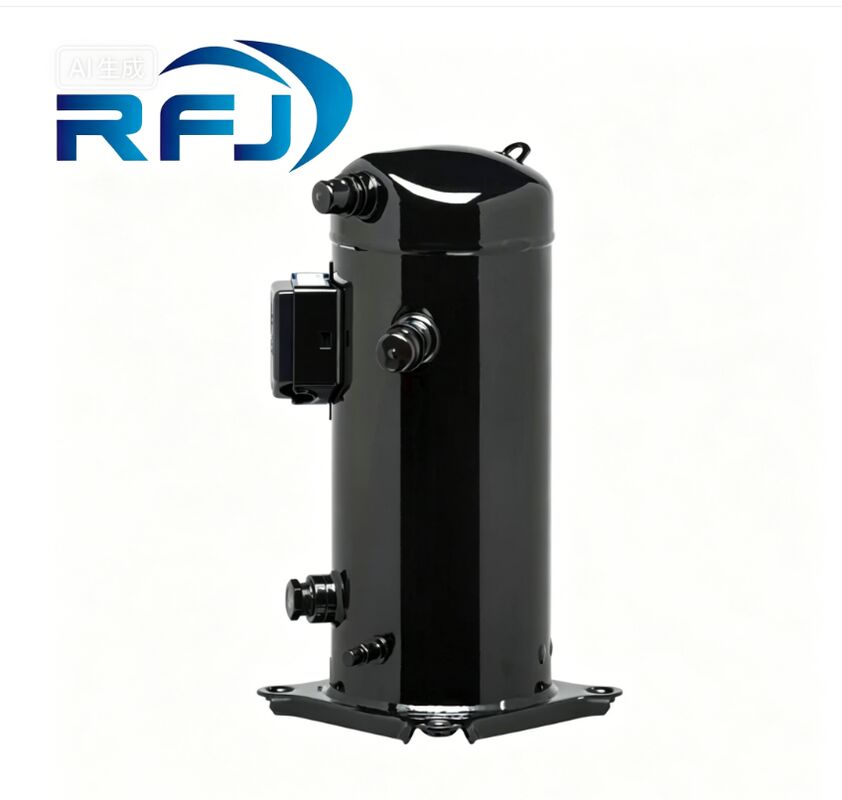

1.5hp Copeland Scroll Air conditioning compressor ZH12K4E-PFZ-524 for heat pumps
1, Product Description:
| Brand name | copeland compressor |
| Place of origin | Thailand |
| Model | ZH12K4E |
| Nominal Power(hp) | 1.7HP |
| Capacity(kw) | 3.7kw |
| COP | 3.0 |
| Displacement(m3/h) | 4.7 |
| Stub Suction(inch) | 3/4 |
| Stub Discharge(inch) | 1/2 |
| Oil Quantity(l) | 0.7 |
| Length/Width/Height(mm) | 272/193/403 |
| Net weight(kg) | 21 |
| Type of compressor | copeland compressor ZH12K4E |
2.Features
Copeland Scroll axial and radial compliance for high reliability
High efficiency and increased heating capacity
High water temperature for all applications
Low sound and low vibration level
Tandem combination for superior seasonal efficiency
4, Our main compressor lines are :
· compressors,
· Copeland scroll compressors: CR,VR, ZB ,ZR, ZF,ZP SERIES
· Copeland Semi-hermetic compressors: DL,D2,D4,D6,D8 SERIES
· performer compressors: SM, SZ, SH SERIES
· commercial compressors: FR, SC SERIES
· Maneurop piston compressors:MT, MTZ, NTZ, MPZ SERIES
· Secop compressor, Carrier(Carlyle) compressor
· Hitachi compressor,Daikin compressor, Sanyo compressor
·Tecumseh compressor, LG compressor, Mitsubishi compressor,
·Toshiba compressor, Panasonic compressor, Embraci Aspera compressor
Copeland Scroll™ Compressors For Heating are designed for optimum operation and reliability of heat pumps connected to hydronic distribution systems for space heating and/or for the production of domestic hot water. These applications require reaching condensing temperatures as high as 65°C with high efficiency and reliability over a broad operating range. Features such as brazed fitting connections and special versions for the tandemization of compressors fit the requirements of heat pump systems.
