| Ονομασία μάρκας: | Copeland |
| Αριθμός μοντέλου: | Zr30k3-pfj-522 |
| Μούβ: | 1pcs |
| τιμή: | discussed |
| Χρόνος παράδοσης: | 7-10 εργάσιμες ημέρες μετά από να λάβει την πληρωμή |
| Όροι πληρωμής: | L/C, T/T, Western Union, D/P, D/A, MoneyGram |

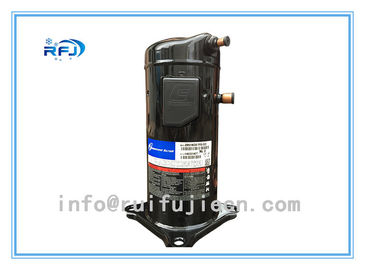

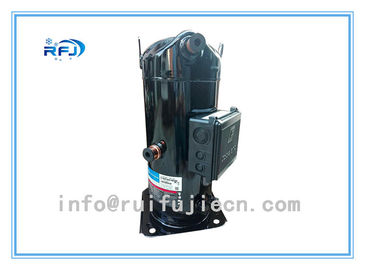

ZR κυλίνδρων ψύξης Copeland ερμητικό πρότυπο zr30k3-pfj-522 συμπιεστών
Τεχνικό Datas:
Περιγραφή:
1.Models έχουν: ZR16M3-TWD-522, ZR19M3-TWD-522, ZR47KC-TFD, ZR94KC-TFD, ZR125KC-TFD,
ZR160KC-TFD, ZR61KC-TFD, ZR108KC-TFD, ZR144KC-TFD, ZR72KC-TFD….
2.The είναι συμπιεστές κυλίνδρων Copeland, μπορούν να χρησιμοποιηθούν για τον κλιματισμό και την ψύξη.
3.We κατασκευάζουν στα πρότυπα στην Κίνα, την Ταϊλάνδη και Belguim.
4. 12 μονάδες που συσκευάζουν με μια παλέτα.
Συμπιεστής κυλίνδρων Copeland 2-7 HP
Συμπιεστής κυλίνδρων Copeland 7-15 HP
Συμπιεστής κυλίνδρων Copeland 20-40 HP
|
Πρότυπο
|
Δύναμη (HP) | Cpacity M3/h εξάτμισης | Όρος αέρα (7.2/54.4°C) | Βάρος (κλ) | Ύψος (χιλ.) | |
| Ψύξη | Δύναμη εισαγωγής (ψ) | |||||
| Ικανότητα (W) | ||||||
| Ενιαία φάση | ||||||
| Zr16k3-PFJ | 1.33 | 3.97 | 4010 | 1320 | 25.9 | 370.4 |
| Zr18k3-PFJ | 1.5 | 4.37 | 4400 | 1440 | 25.9 | 370.4 |
| Zr20k3-PFJ | 1.69 | 4.76 | 4890 | 1600 | 25.9 | 370.4 |
| Zr22k3-PFJ | 1.83 | 5.34 | 5330 | 1730 | 25.9 | 382.8 |
| Zr24k3-PFJ | 2 | 5.92 | 5920 | 1870 | 26.3 | 382.8 |
| Zr26k3-PFJ | 2.17 | 6.27 | 6330 | 2000 | 25.9 | 382.8 |
| Zr28k3-PFJ | 2.33 | 6.83 | 6910 | 2150 | 27.2 | 382.8 |
| Zr30k3-PFJ | 2.5 | 7.3 | 7380 | 2290 | 28.5 | 405.5 |
| Zr32k3-PFJ | 2.67 | 7.55 | 7760 | 2410 | 28.1 | 405.5 |
| Zr34k3-PFJ | 2.83 | 8.02 | 8200 | 2520 | 29.5 | 405.5 |
| Zr36k3-PFJ | 3 | 8.61 | 8790 | 2700 | 29.5 | 405.5 |
| Zr40k3-PFJ | 3.33 | 9.43 | 9670 | 2970 | 29.9 | 419.3 |
Μπορούμε να παρέχουμε περισσότερα ZR πρότυπα όπως να ακολουθήσουν:
| copeland συμπιεστές - κλιματισμός (cont Δ) | |||||
| hBp συμπιεστής – τριφασικός | |||||
| Διαμορφώστε το αριθ. | Ικανότητα ψύξης (σημείο εκτίμησης 7.2) | ονομαστικό HP | Displ. cc/rev | nom ρεύμα | Βάρος |
| FLa | (Κλ) | ||||
| ZR22K3PFJ522 | 5240 | 1.83 | 30.7 | 9.6 | 26 |
| ZR28K3PFJ522 | 6970 | 2.33 | 39.2 | 12.9 | 27.3 |
| ZR28K3EPFJ522 | 6970 | 2.33 | 39.2 | 12.9 | 27.3 |
| ZR34K3PFJ522 | 8260 | 2.83 | 46.1 | 13.6 | 29.5 |
| ZR34K3EPFJ522 | 8260 | 2.83 | 46.1 | 13.6 | 29.5 |
| ZR36K3PFJ522 | 8850 | 3 | 49.5 | 16.4 | 29.5 |
| ZR40K3PFJ522 | 9620 | 3.33 | 54.19 | 17.1 | 32 |
| ZR42K3PFJ522 | 10140 | 3.5 | 56.8 | 17.1 | 30 |
| ZR47K3PFJ522 | 11500 | 3.9 | 64.1 | 19.3 | 32.6 |
| ZR68KCPFJ522 | 16800 | 5.75 | 93 | 28.2 | 43.5 |
| ZR28K3TFD522 | 6970 | 2.33 | 39.2 | 5 | 26 |
| ZR28K3ETFD522 | 6970 | 2.33 | 39.2 | 5 | 26 |
| ZR36K3TFD522 | 8850 | 3 | 49.5 | 5.7 | 29.5 |
| ZR40K3TFD522 | 9260 | 3.33 | 51.2 | 6.4 | 32 |
| ZR47KCTFD522 | 11400 | 3.9 | 63.2 | 7.2 | 32.6 |
| ZR47KCETFD522 | 11400 | 3.9 | 63.2 | 7.2 | 32.6 |
| ZR48KCTFD522 | 11500 | 4.1 | 67.2 | 7.5 | 38 |
| ZR48KCETFD522 | 11500 | 4.1 | 67.2 | 7.5 | 38 |
| ZR54KCTFD522 | 13000 | 4.5 | 73.2 | 8.2 | 35.5 |
| ZR57KCTFD522 | 13660 | 4.75 | 76.9 | 8.2 | 36 |
| ZR57KCETFD522 | 13660 | 4.75 | 76 | 8.2 | 36 |
| ZR61KCTFD522 | 14700 | 5 | 82.4 | 10 | 35.9 |
| ZR61KCETFD522 | 14700 | 5 | 82.4 | 10 | 35.9 |
| ZR68KCTFD522 | 16500 | 5.75 | 93 | 10 | 38.2 |
| ZR72KCTFD522 | 17800 | 6 | 98 | 10 | 38.2 |
| ZR72KCETFD522 | 17800 | 6 | 98 | 10 | 38.2 |
| ZR81KCTFD522 | 19800 | 6.75 | 110.6 | 12 | 40 |
| ZR81KCETFD522 | 19800 | 6.75 | 110.6 | 12 | 40 |
| ZR94KCTFD522 | 23000 | 8 | 127.2 | 16.2 | 59 |
| ZR94KCTFD523 | 23200 | 8 | 127.2 | 16.2 | 58.2 |
| ZR94KCETFD523 | 23200 | 8 | 127.2 | 16.2 | 58.2 |
| ZR108KCTFD522 | 26670 | 9 | 147.5 | 17.3 | 64 |
| ZR108KCETFD523 | 26670 | 9 | 147.5 | 17.3 | 64 |
| ZR108KCTFD523 | 26900 | 9 | 144.5 | 17.3 | 62.7 |
| ZR125KCTFD522 | 30660 | 10 | 171.4 | 19.2 | 64 |
| ZR125KCETFD523 | 31000 | 10 | 165.6 | 19.2 | 62.7 |
| ZR125KCTFD523 | 31000 | 10 | 165.6 | 19.2 | 62.7 |
| ZR144KCTFD522 | 34700 | 12 | 191.7 | 19.6 | 62.7 |
| ZR144KCETFD523 | 34700 | 12 | 191.7 | 19.6 | 62.7 |
| ZR144KCTFD523 | 34700 | 12 | 191.7 | 19.6 | 62.7 |
| ZR16M3TWD551 | 37700 | 13 | 204.3 | 25 | 103.1 |
| ZR16M3ETWD551 | 37700 | 13 | 204.3 | 17.3 | 103 |
| ZR19M3TWD551 | 45900 | 15 | 241.9 | 23.8 | 112.1 |
| ZR19M3ETWD551 | 45900 | 15 | 241.9 | 23.8 | 119 |
| Φάση | Πρότυπο | Άλογο Power/HP | Μετατόπιση (m3/h) | ARI 7.2/54.4°C | Weight/Kg | Ύψος το /mm | |
| Ψύξη (ψ) | Εισαγωγή (ψ) | ||||||
| 1 φάση | Zr16k3-PFJ | 1.33 | 3.97 | 4010 | 1320 | 25.9 | 370.4 |
| Zr18k3-PFJ | 1.5 | 4.37 | 4400 | 1440 | 25.9 | 370.4 | |
| Zr20k3-PFJ | 1.69 | 4.76 | 4890 | 1600 | 25.9 | 370.4 | |
| Zr22k3-PFJ | 1.83 | 5.34 | 5330 | 1730 | 25.9 | 382.8 | |
| Zr24k3-PFJ | 2 | 5.92 | 5920 | 1870 | 26.3 | 382.8 | |
| Zr26k3-PFJ | 2.17 | 6.27 | 6330 | 2000 | 25.9 | 382.8 | |
| Zr28k3-PFJ | 2.33 | 6.83 | 6910 | 2150 | 27.2 | 382.8 | |
| Zr30k3-PFJ | 2.5 | 7.3 | 7380 | 2290 | 28.6 | 405.5 | |
| Zr32k3-PFJ | 2.67 | 7.55 | 7760 | 2410 | 28.1 | 405.5 | |
| Zr34k3-PFJ | 2.83 | 8.02 | 8200 | 2520 | 29.5 | 405.5 | |
| Zr36k3-PFJ | 3 | 8.61 | 8790 | 2700 | 29.5 | 405.5 | |
| Zr40k3-PFJ | 3.33 | 9.43 | 9670 | 2970 | 29.9 | 419.3 | |
| Zr42k3-PFJ | 3.5 | 9.94 | 10100 | 3120 | 29.9 | 419.3 | |
| Zr47k3-PFJ | 3.92 | 11.16 | 11500 | 3530 | 30.4 | 436.6 | |
| 3 φάση | Zr22k3-TFD | 1.83 | 5.34 | 5330 | 1650 | 25.9 | 382.8 |
| Zr24k3-TFD | 2 | 5.92 | 5920 | 1840 | 25.9 | 382.8 | |
| Zr26k3-TFD | 2.17 | 6.27 | 6330 | 1960 | 25.9 | 382.8 | |
| Zr28k3-TFD | 2.33 | 6.83 | 6910 | 2150 | 26.3 | 405.5 | |
| Zr30k3-TFD | 2.5 | 7.3 | 7380 | 2290 | 26.3 | 405.5 | |
| Zr32k3-TFD | 2.67 | 7.55 | 7760 | 2410 | 26.3 | 405.5 | |
| Zr34k3-TFD | 2.83 | 8.02 | 8200 | 2500 | 28.6 | 405.5 | |
| Zr36k3-TFD | 3 | 8.61 | 8790 | 2680 | 27.2 | 405.5 | |
| Zr40k3-TFD | 3.33 | 9.43 | 9670 | 2950 | 28.6 | 419.3 | |
| 2zr42k3-TFD | 3.5 | 9.94 | 10100 | 3090 | 28.6 | 419.3 | |
| Zr45kc-TFD | 3.75 | 10.73 | 11000 | 3380 | 28.6 | 436.3 | |
| Zr46kc-TFD | 3.83 | 10.95 | 11100 | 3390 | 34.9 | 456.9 | |
| Zr47kc-TFD | 3.92 | 11.16 | 11500 | 3500 | 28.6 | 436.3 | |
| Zr49kc-TFD | 4.08 | 11.45 | 11700 | 3600 | 35.4 | 456.9 | |
| Zr54kc-TFD | 4.5 | 12.73 | 12900 | 4030 | 35.4 | 456.9 | |
| Zr57kc-TFD | 4.75 | 13.42 | 13700 | 4160 | 35.4 | 456.9 | |
| Zr61kc-TFD | 5.08 | 14.34 | 14600 | 4430 | 35.8 | 456.9 | |
| Zr68kc-TFD | 5.75 | 16.18 | 16400 | 4970 | 38.1 | 456.9 | |
| Zr72kc-TFD | 6 | 17.05 | 17400 | 5250 | 38.1 | 456.9 | |
| Zr81kc-TFD | 6.75 | 19.2 | 19690 | 5830 | 40.9 | 462.4 | |
| Zr84kc-TFD | 7 | 19.75 | 20330 | 6140 | 56.7 | 495.3 | |
| Zr94kc-TFD | 8 | 22.14 | 22940 | 7000 | 58 | 495.3 | |
| Zr108kc-TFD | 9 | 25.15 | 26250 | 7830 | 72.6 | 533.4 | |
| Zr125kc-TFD | 10 | 28.77 | 30470 | 9060 | 78 | 533.4 | |
| Zr90k3-TWD | 7.5 | 20.9 | 21540 | 6620 | 91 | 542 | |
| Zr11m3-TWD | 9 | 24.9 | 25840 | 7805 | 91 | 542 | |
| Zr12m3-TWD | 10 | 28.8 | 29890 | 8955 | 92 | 542 | |
| Zr16m3-TWD | 13 | 35.6 | 37330 | 11175 | 98 | 557 | |
| Zr19m3-TWD | 15 | 42.1 | 45170 | 13400 | 112 | 596 | |
