| Ονομασία μάρκας: | copeland |
| Αριθμός μοντέλου: | Zh48kve-TWD |
| Μούβ: | 1pcs |
| τιμή: | community |
| Χρόνος παράδοσης: | 5-8 ημέρες μετά από την πληρωμή |
| Όροι πληρωμής: | T/T, Western Union |

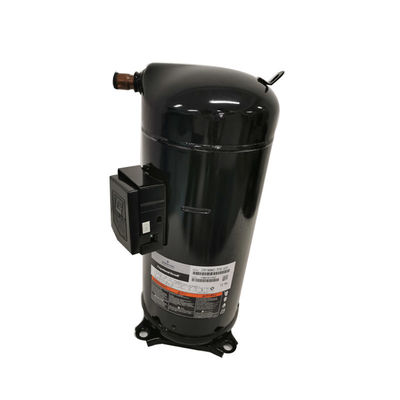

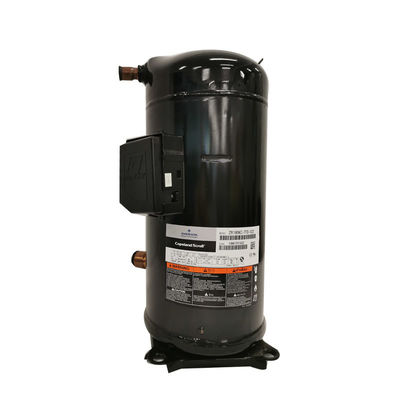

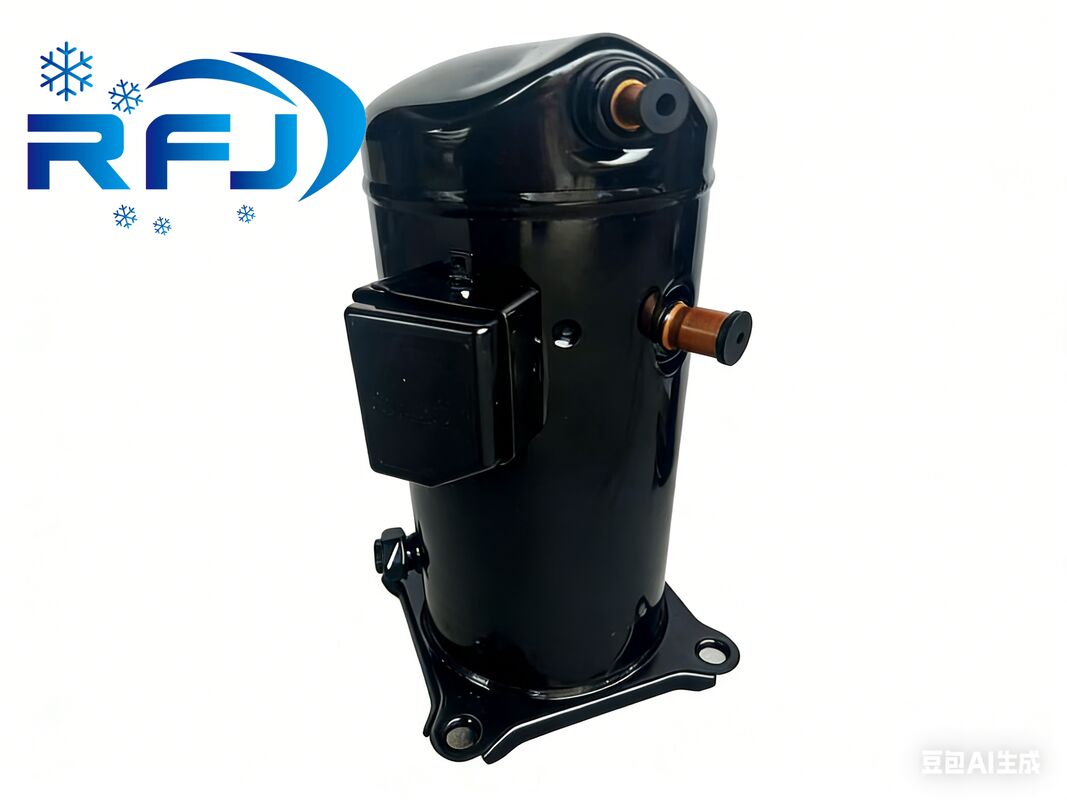

R407c Copeland Zh48kve-Twd Scroll Compressors for Heat Pump Applications
1, Product Description:
| Displacement [m³/h]: | 42,8 | |
| Sound power [dBA]: | 86 | |
| Sound power with sound shell [dBA]: | 76 | |
| Sound pressure level [dB]: | 75 | |
| Net Weight [kg]: | 112 | |
| Gross Weight [kg]: | 119 | |
| Oil charge [dm³]: | 4,1 | |
| Maximum high pressure [bar]: | 32 | |
| Maximum standstill pressure [bar]: | 22,6 | |
| Minimal lowside temperature [°C]: | -35 | |
| Maximum lowside temperature [°C]: | 50 | |
| PED category: | 2 |
| Power supply [V/~/Hz]: | 380-420V/3/50Hz | |
| Locked rotor current [A]: | 198 | |
| Max. operating current [A]: | 32 | |
| Winding resistance [Ω]: | 0,7 |
| inches | |||
| Suction connection with supplied sleeve: | 1 5/8" | ||
| Discharge connection with supplied sleeve: | 1 1/8" |
2.Features
Copeland Scroll axial and radial compliance for high reliability
High efficiency and increased heating capacity
High water temperature for all applications
Low sound and low vibration level
Tandem combination for superior seasonal efficiency
3.Drawings
ZH12K4E to ZH45K4E,ZH56K4E to ZH11M4E, ZH06KVE to ZH18KVE PFS-582,ZH04K1P to ZH19K1P , etc.
1,refrigerant: R134a,R407C,R410a
2,Quiet Operation- ZH heating compressors have been designed for low sound levels, a specific requirement for indoor heat pumps.High efficiency,Low price
3.High Efficiency
4, Our main compressor lines are :
· compressors,
· Copeland scroll compressors: CR,VR, ZB ,ZR, ZF,ZP SERIES
· Copeland Semi-hermetic compressors: DL,D2,D4,D6,D8 SERIES
· performer compressors: SM, SZ, SH SERIES
· commercial compressors: FR, SC SERIES
· Maneurop piston compressors:MT, MTZ, NTZ, MPZ SERIES
· Secop compressor, Carrier(Carlyle) compressor
· Hitachi compressor,Daikin compressor, Sanyo compressor
·Tecumseh compressor, LG compressor, Mitsubishi compressor,
·Toshiba compressor, Panasonic compressor, Embraci Aspera compressor
