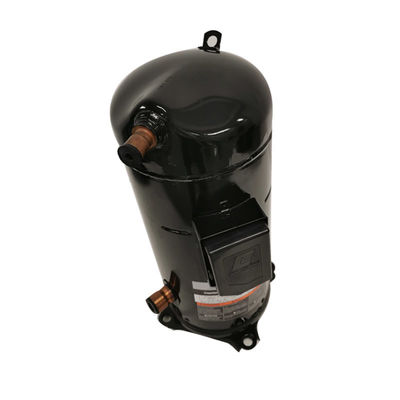

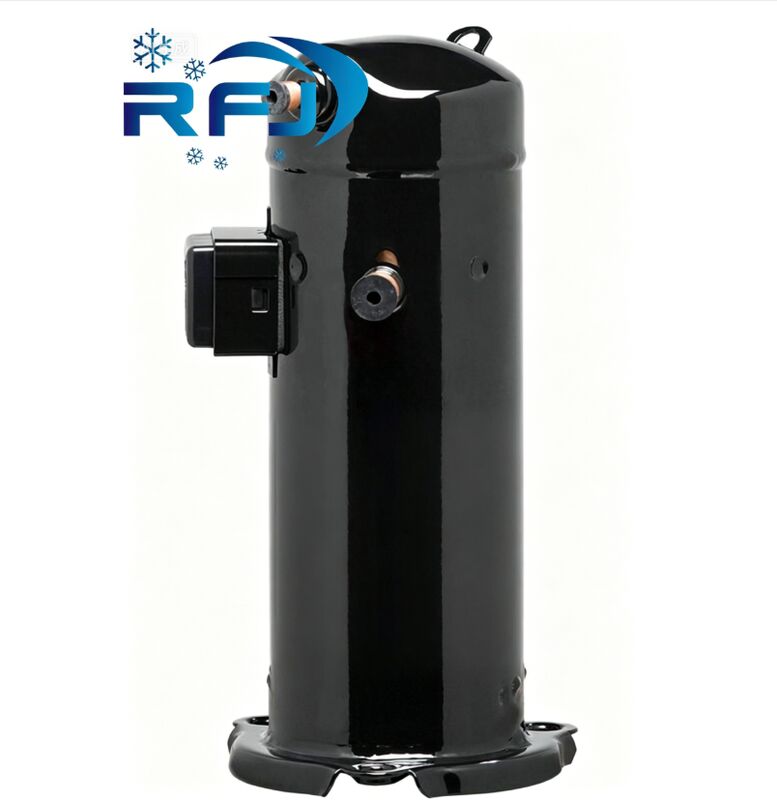

China 7.5HP Copeland Commercial Refrigerator Compressor Zh56K4e for Heat Pumps
1, Product Description:
| Displacement [m³/h]: | 20,9 | |
| Sound power [dBA]: | 83 | |
| Sound power with sound shell [dBA]: | 73 | |
| Sound pressure level [dB]: | 72 | |
| Net Weight [kg]: | 93 | |
| Gross Weight [kg]: | 100 | |
| Oil charge [dm³]: | 4 | |
| Maximum high pressure [bar]: | 32 | |
| Maximum standstill pressure [bar]: | 22,6 | |
| Minimal lowside temperature [°C]: | -35 | |
| Maximum lowside temperature [°C]: | 50 | |
| PED category: | 2 |
| Power supply [V/~/Hz]: | 380-420V/3/50Hz | |
| Locked rotor current [A]: | 99 | |
| Max. operating current [A]: | 16 | |
| Winding resistance [Ω]: | 1,4 |
| inches | |||
| Suction connection with supplied sleeve: | 1 3/8" | ||
| Discharge connection with supplied sleeve: | 7/8" |
2.Features
Copeland Scroll axial and radial compliance for high reliability
High efficiency and increased heating capacity
High water temperature for all applications
Low sound and low vibration level
Tandem combination for superior seasonal efficiency
3.Drawings
ZH12K4E to ZH45K4E,ZH56K4E to ZH11M4E, ZH06KVE to ZH18KVE PFS-582,ZH04K1P to ZH19K1P , etc.
1,refrigerant: R134a,R407C,R410a
2,Quiet Operation- ZH heating compressors have been designed for low sound levels, a specific requirement for indoor heat pumps.High efficiency,Low price
3.High Efficiency
4.Caution
Inadequate lubrication! Bearing and moving parts destruction! Minimise liquid refrigerant returning to the compressor. Too much refrigerant dilutes the oil. Liquid refrigerant can wash the oil off the bearings and moving parts leading to overheating and compressor failure. Due to Copeland Scrolls inherent ability to handle liquid refrigerant in flooded start and defrost cycle operation, an accumulator is not required for durability in most systems. However, large volumes of liquid refrigerant repeatedly flooding back to the compressor during normal off cycles, or excessive liquid refrigerant flooding back during defrost or varying loads can dilute the oil, no matter what the system charge is. As a result, bearings and moving parts will be inadequately lubricated and wear may occur.
