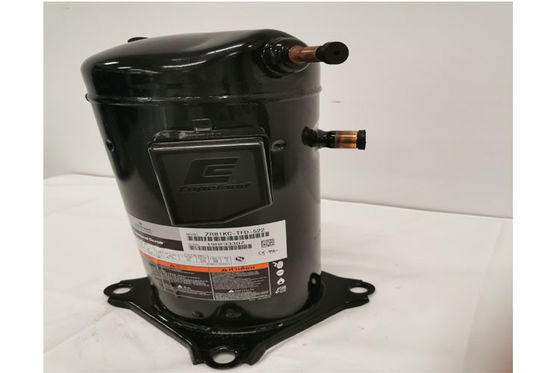

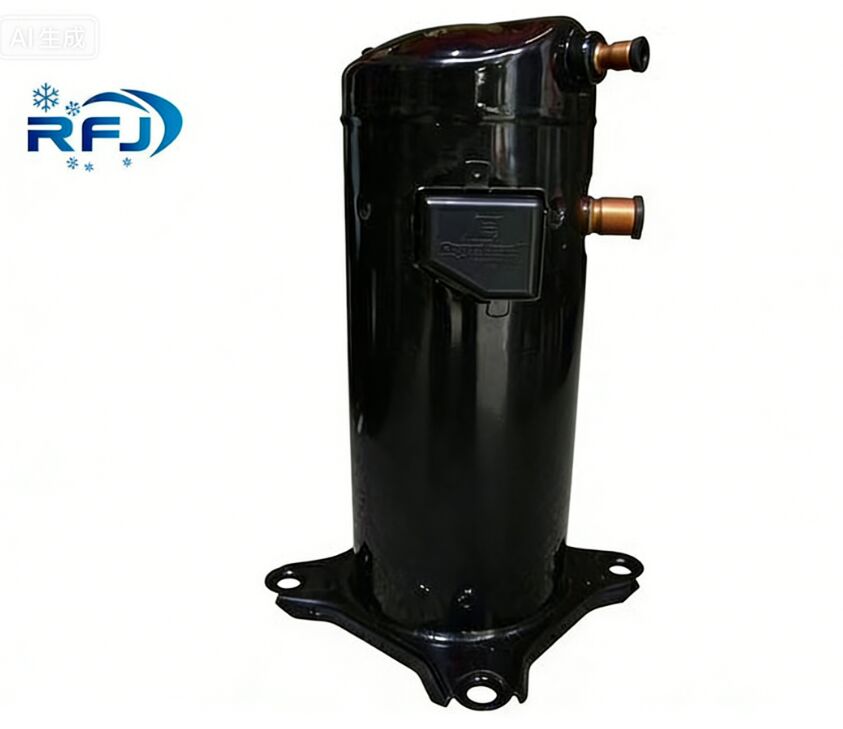

Compressor horse power 15hp copeland ZB114KQE-TFD for air conditioning
1.Product Introduction:
Technical data:
Displacement [m³/h]: 43,3
Sound power [dBA]: 83
Sound power with sound shell [dBA]: 73
Sound pressure level [dB]: 72
Net Weight [kg]: 66
Oil charge [dm³]: 3,3
Maximum high pressure [bar]: 32
Maximum standstill pressure [bar]: 22,6
Minimal lowside temperature [°C]: -35
Maximum lowside temperature [°C]: 50
PED category: 2
Electrical data
Power supply [V/~/Hz]: 380-420V/3/50Hz
Locked rotor current [A]: 174
Max. operating current [A]: 33,3
More detail:
Refrigerant Freq (Hz) Phase Voltage Application
R-404A HFC 60 3 460 Medium Temperature
R-507 HFC 60 3 460
R-507 HFC 50 3 380/420
Product specification:
| Specification | Copeland compressor ZB144KQE-TFD |
| Displacement | 43.3m3/hr |
| Oil charge | 3.3L |
| Current(A) | 33.3 |
| E.E.R | 6.70 |
| Mass flow(lbs/wh) | 1645 |
| Weight(KG) | 66 |
| Refrigerant | R404A |
2.More detail information for ZB series:
| Model | Horse Power | Refrigerant | Voltage |
| ZB15KQ-PFJ-558 | 2 | R22 | 220v/50hz |
| ZB15KQE-PFJ-558 | 2 | R404a | 220v/50hz |
| ZB15KQ-TFD-558 | 2 | R22 | 380V/50HZ |
| ZB15KQE-TFD-558 | 2 | R404a | 380V/50HZ |
| ZB19KQ-PFJ-558 | 3 | R22 | 220v/50hz |
| ZB19KQE-PFJ-558 | 3 | R404a | 220v/50hz |
| ZB19KQ-TFD-558 | 3 | R22 | 380V/50HZ |
| ZB19KQE-TFD-558 | 3 | R404a | 380V/50HZ |
| ZB21KQ-TFD-558 | 3 | R22 | 380V/50HZ |
| ZB21KQE-TFD-558 | 3 | R404a | 380V/50HZ |
| ZB21KQ-PFJ-558 | 3 | R22 | 220v/50hz |
| ZB21KQE-PFJ-558 | 3 | R404a | 220v/50hz |
| ZB26KQ-PFJ-558 | 4 | R22 | 220v/50hz |
| ZB26KQE-PFJ-558 | 4 | R404a | 220v/50hz |
| ZB26KQ-TFD-558 | 4 | R22 | 380V/50HZ |
| ZB26KQE-TFD-558 | 4 | R404a | 380V/50HZ |
| ZB29KQ-TFD-558 | 4 | R22 | 380V/50HZ |
| ZB29KQE-TFD-558 | 4 | R404a | 380V/50HZ |
| ZB38KQ-TFD-558 | 5 | R22 | 380V/50HZ |
| ZB38KQE-TFD-558 | 5 | R404a | 380V/50HZ |
| ZB45KQ-TFD-558 | 6 | R22 | 380V/50HZ |
| ZB45KQE-TFD-558 | 6 | R404a | 380V/50HZ |
| ZB48KQ-TFD-558 | 7 | R22 | 380V/50HZ |
| ZB48KQE-TFD-558 | 7 | R404a | 380V/50HZ |
| ZB58KQ-TFD-551 | 8 | R22 | 380V/50HZ |
| ZB58KQE-TFD-551 | 8 | R404a | 380V/50HZ |
| ZB66KQ-TFD-551 | 9 | R22 | 380V/50HZ |
| ZB66KQE-TFD-551 | 9 | R404a | 380V/50HZ |
| ZB76KQ-TFD-551 | 10 | R22 | 380V/50HZ |
| ZB76KQE-TFD-551 | 10 | R404a | 380V/50HZ |
| ZB88KQ-TFD-551 | 12 | R22 | 380V/50HZ |
| ZB95KQ-TFD-551 | 13 | R22 | 380V/50HZ |
| ZB95KQE-TFD-551 | 13 | R404a | 380V/50HZ |
| ZB114KQ-TFD-551 | 15 | R22 | 380V/50HZ |
| ZB114KQE-TFD-551 | 15 | R404a | 380V/50HZ |
3.Shipping&Payment:
1.Shipping:
1). For Sample order in stock, we aim to ship the compressor within 3 days.
2). For any Bulk order, generally we ship compressor in 10-15 working days after receiving deposit.
2.Payment:
1). T/T
2). Western Union
3.Delivery:
Here we guarantee on time delivery and if necessary, we will provide you the best logistics solution for the goods to reach at your location on time.
FAQ:
1). What is your delievery time?
---The time of delievery is 3-10 working days after payment.
2). What is your MOQ?
---Our MOQ is usually 1 set.
3). What is the price?
---The price is depends on the quantity
